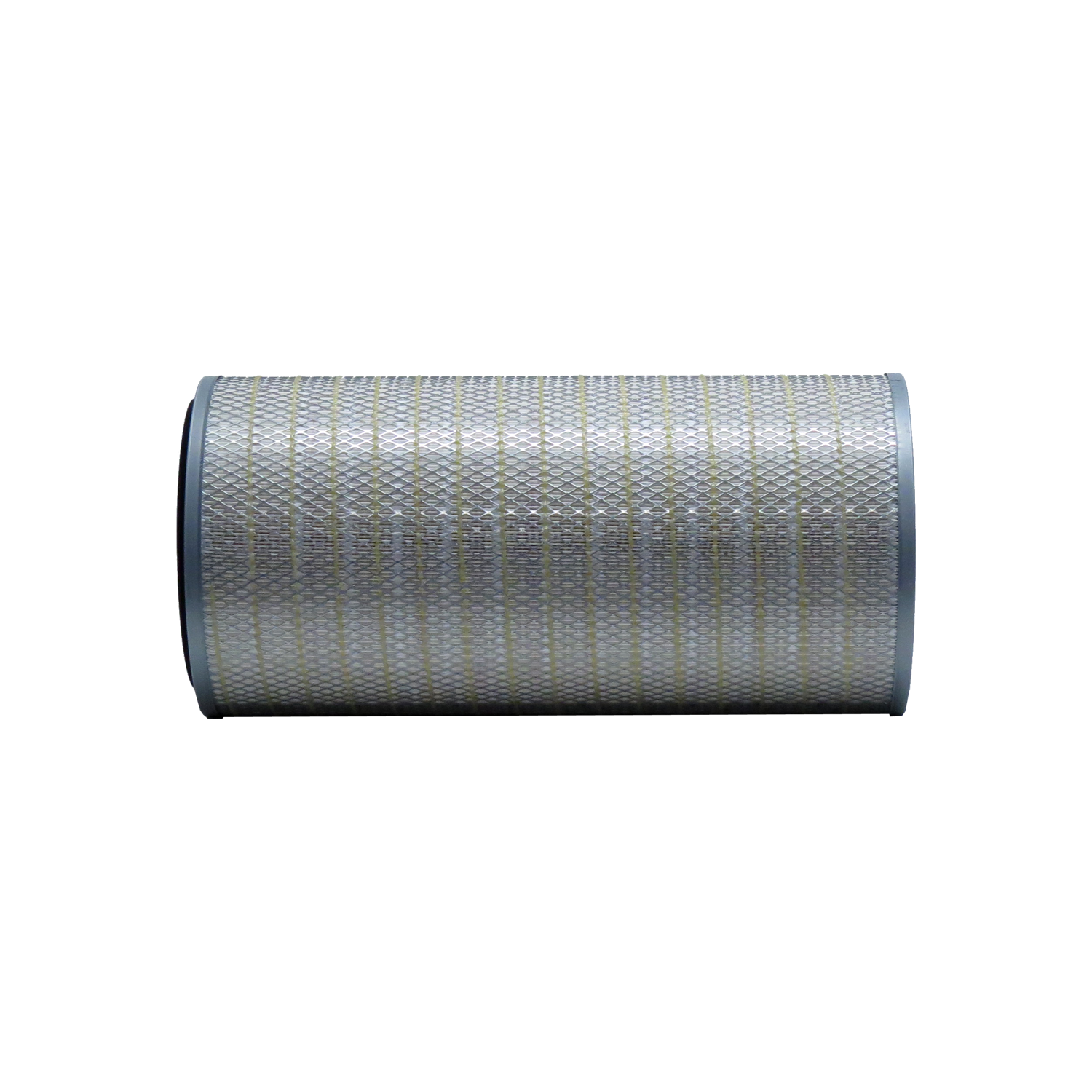

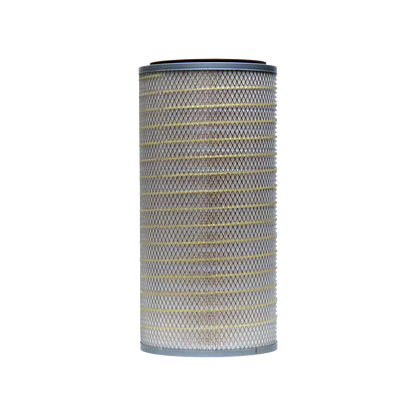

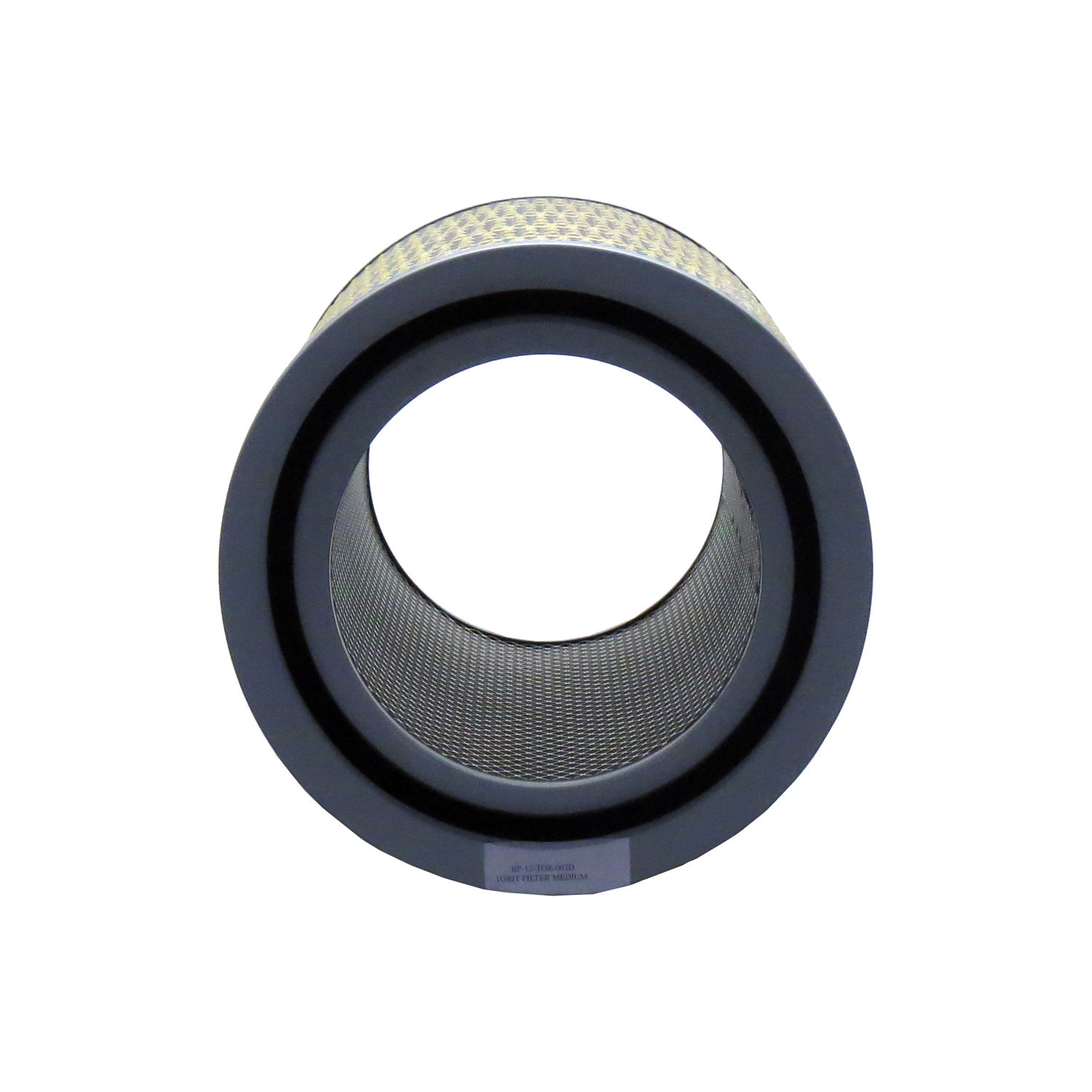

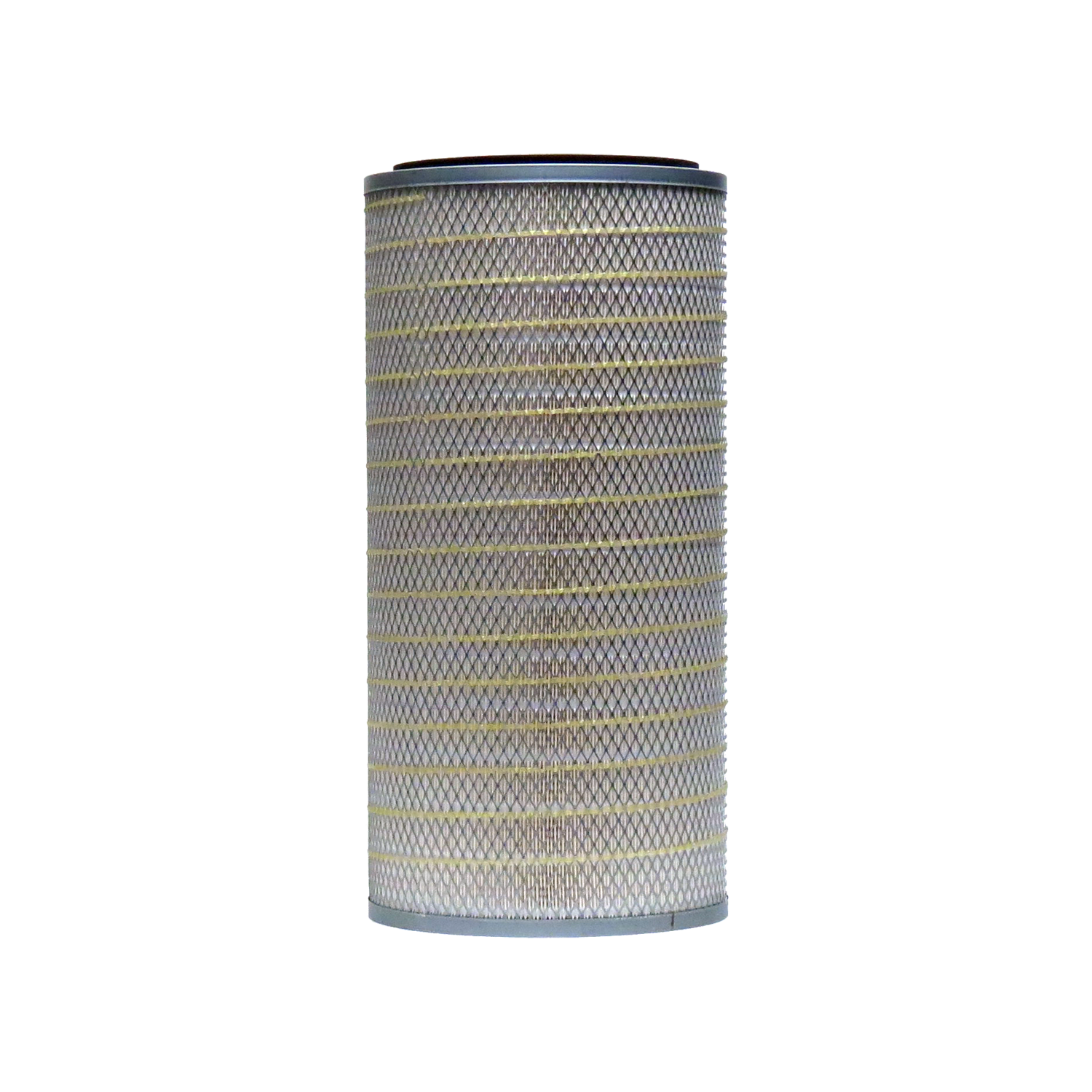

Large Dust Collector Filter

Part Number: BP-12-TOR-003D

Please contact us if you have questions or would like to place a large quantity order.

Dust Collector filters are appropriate for a broad range of uses, from control of fumes and fine particle dust and many more applications. Typical commercial uses include:  • Paint lines and booths• Industrial processing • Metalworking • Pharmaceutical • Woodworking • Ceramic studios and much more.

 Compatible with most industrial dust collecting filters.

Donaldson P033098-016-436. Donaldson P-033197, Mac 321233, Mac 376320, Deimco V06240, Deimco 299250-0101, UAS 33-10089. FARR 205637-005, Sulzer Metco 972-2, Champion CE 262-0854, ECO 26-16312-5021, AAF American Air 1835792-001, AAF American Air 1835792

Air Filter Attributes:

Media Type: Nanoweb on Cellulose

Filter Area (sq ft): 254.00

Outer Diameter: 13.84”

Inner Diameter: 9.46“

Length: 26.00”

Gasket Material: Urethane

Temperature Limit: 180 F

Temperature Limit: 82 C

Flame Retardant: Yes

Pleat Height: 2.00”

Shape: Round

Endcap Construct: Open/Open

Construction: Galvanized Steel end caps and screen
